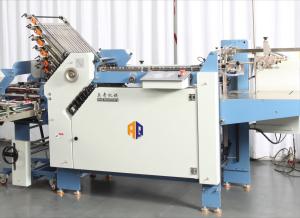

480mm Cross Fold Electric Paper Folding Machine With 12 Buckle Plates

Name: 480mm Cross Fold Electric Paper Folding Machine With 12 Buckle Plates
Brand: AOQI
Price: 1 USD

Brand Name : AOQI

Model Number : 480T-12K+1D

Certification : CE Certificate

Place of Origin : Dongguan City , China

MOQ : 1 SET

Price : Negotiated

Payment Terms : T/T

Supply Ability : 700pcs per year

Delivery Time : 7-15 days

Packaging Details : Export wooden box

Model : 480T-12K+1D

Name : Cross Fold Paper Folding Machine

Max. infeed size : 480*1000mm

Mini infeed size : 50*105mm

Paper range : 30-250g

Max. folding roller speed : 180m/min

Power : 380V, 3.3KW

Folding ways : parallel fold and 1 cross fold

Warranty : 18 months

Certificate : CE certificate

Weight : 771.5KG

Contact Now

480mm Cross Fold Paper Folding Machine Width 12 Buckle Plates And Cross Fold

480T-12K+1D Cross Fold Paper Folding Machine can be used for small format paper with different thickness . It can acheive different folding type like half fold , Z-fold, double parallel-fold and 1 cross fold for the final fold .

Parameters

Max paper feed size	480*1000mm
Min paper feed size	50*105mm
Paper thickness range	30-250g
Max speed of folding roller	180m/min
Max frequency of folding knife	460times/min
Input power	380V
Total power	3.3KW
Machine weight	771.5KG
Machine dimensions	290016001480mm

Feature

1.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage

2.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled

3.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input

4.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function

5.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
